Bonner Concrete Products INc.

1041.161041.131041.141500 Gal Tank w_Flange

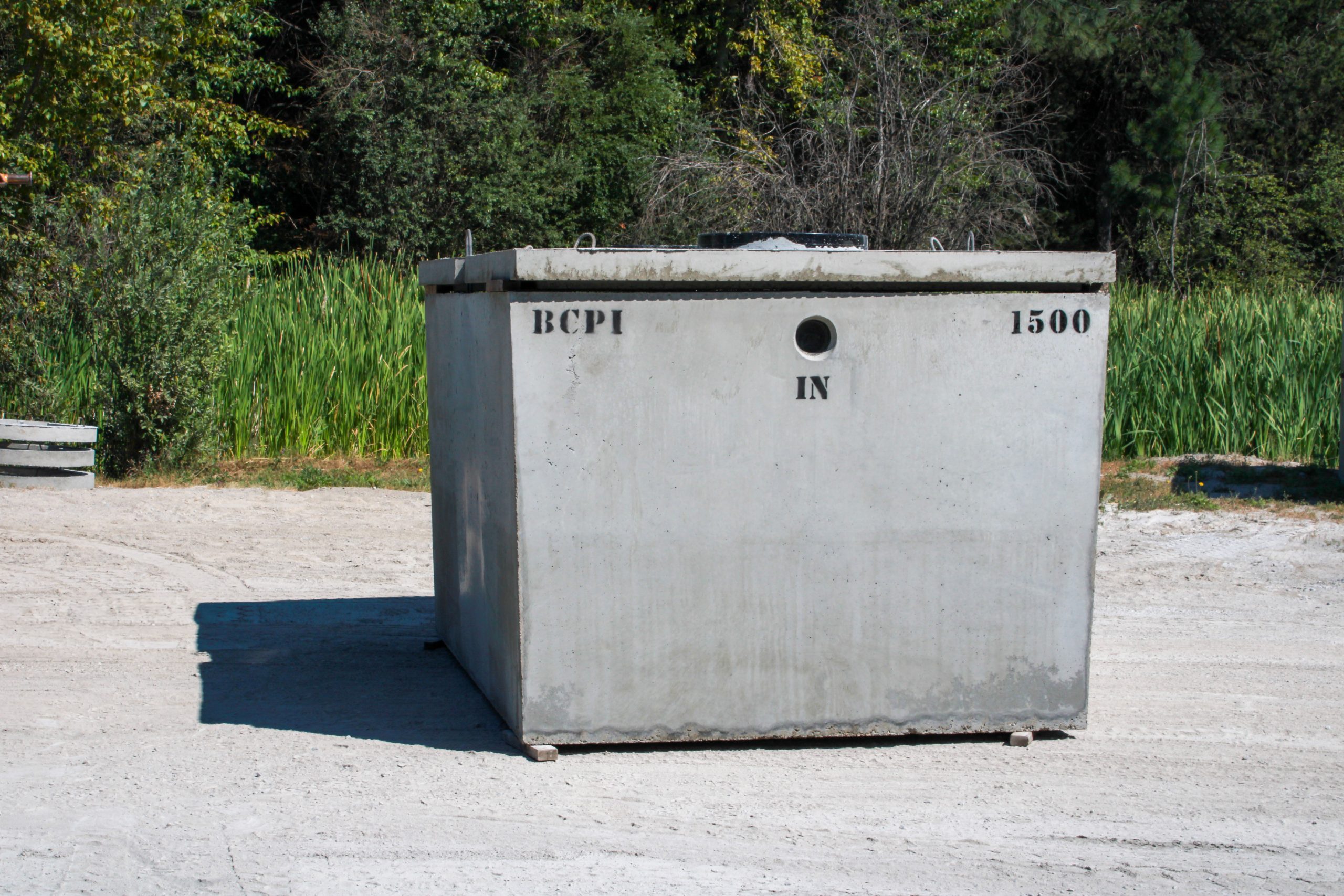

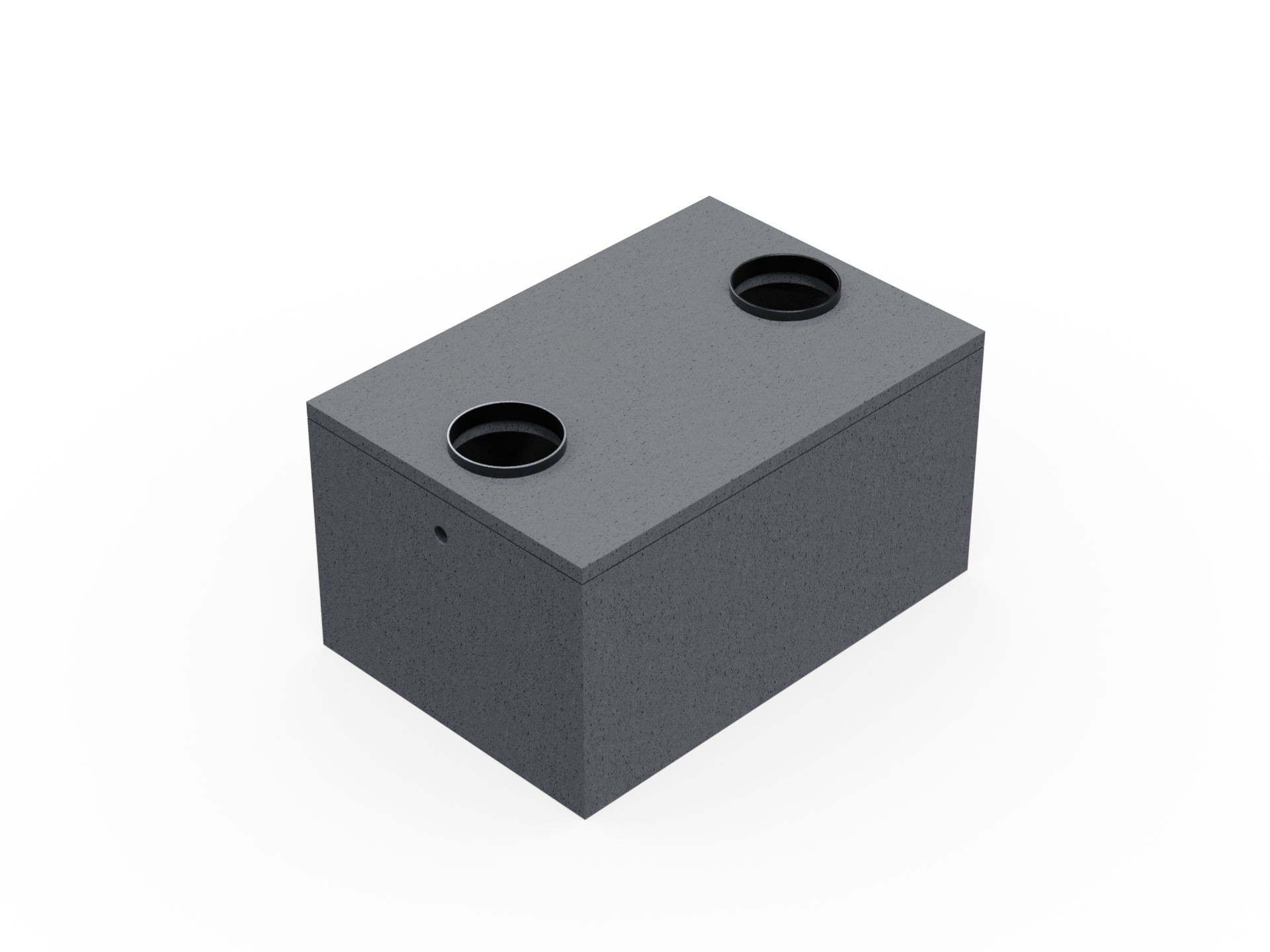

1500 Gallon 1-Piece Septic Tank With Orenco Flange

Part Number: 1041
Product: 1500 Gallon 1-Piece Septic Tank With Orenco Flange
Tank Size: 9’11” L x 6’9” W x 5’3” H
Inlet: 51” from bottom of the tank to the bottom of the inlet hole.
Outlet: 48” from bottom of the tank to the bottom of the outlet hole.
Weight: 12,000 lbs.
Dig hole: 12’ L x 9’ W
(A recommended 1’ minimum to 3’ maximum for back fill, but please check your installation specifications.)

Instruction Sheet for Installation View Schematics PDF

Description

Product Overview:

This 1500-Gallon Septic Tank is a single compartment, 1-piece tank. The 1-piece tank is usually recommended if you are near a body of water or if there is high ground water in the area. The permit will specify if you have this requirement. The 1500-gallon tank allows for extra capacity and may give you the ability to add an extra bedroom. (Please check your permit to confirm size of tank required.) This 1-piece tank includes two 24” poured in Orenco flanges on top of the tank. (Used with green ribbed riser and a 24” plastic lid) The poured in flange is ideal if you are wanting easier tank access. This tank also includes mastic for sealing the top to the tank, and pre-installed plastic baffles and gasket seals (inlet and outlet) for ease of plumbing installation.

Other Compatible Products: (sold separately)

Effluent Filter (Product #5130), Green Ribbed Riser (Product #5150), 24” Plastic Lid (Product #5120), 12×6″ Plastic Riser (Product #5100).

*Customers should check their permit from Panhandle Health before ordering.

Note: If you are in a sewer district, check with the district supervisor.

In order to decide on the size or type of tank, you will need to contact Panhandle Health Department or your local sewer district.

While we do supply both concrete and plastic tanks, we would only recommend the plastic tank if accessing the site is not feasible.

We deliver and set the tanks. We do not prep the site for the septic tank or finish installing pipes or drain fields.

Concrete covers are less expensive however they are heavier and more cumbersome than plastic. The plastic lids are green in color and blend into the landscape and are easily accessed for maintenance.

We do not recommend anything larger than a riding lawnmower.

3’ is the max bury on a tank, 2’ max on the larger tanks. Please check with Panhandle Health Department or your sewer district for specifics.

We recommend using 4” pipe. Check with your inspector for specifics.

Clean off seal, read instruction & place accordingly. Only push the pipe in ¾” into the tank. Warning: Pushing the pipe in to far will interfere with the pre-installed baffle.

This is not required, unless requested by your inspector.

This will depend on your conditions. Concrete tanks can float. It is recommended that you fill with 2’ of water to hold the tank in place if you are not planning to backfill immediately.

Concrete septic tanks are known for their durability and long lifespan. With proper maintenance, a concrete tank can last for decades.

No, you will have to purchase that through a local supplier.

Yes. Check with Panhandle Health Department for more information.

Single compartment septic tanks. Our manufactured double compartment tanks are considered pump stations.

Bonner Concrete supplies the tank, ez drain drain-field, sewer pipe, perforated pipe, ABS pipe, distribution boxes, fittings, risers and lids.

CONTACT Us

EMAIL:

bcpi@live.com

Give us a call:

208.263.3979

Location:

464616 Highway 95 Sagle, ID  83860

Mailing address

P.O. Box 321 Sagle, ID  83860

Limited Warranty Policy
Bonner Concrete Products Inc.

Scope of Warranty:
Bonner Concrete Products Inc. warrants its pre-cast concrete products to be free from manufacturing defects in materials and workmanship under normal use and service conditions for a period of one (1) year from the date of delivery or installation, whichever comes first.

Limited Warranty Terms

What Is Covered:
This warranty applies solely to defects arising from the manufacturing process, including:

  • Structural integrity issues due to improper curing or material inconsistencies.
  • Cracks, chips, or other defects resulting directly from manufacturing errors.

What Is Not Covered:
This warranty does not cover:

  1. Damage caused by improper handling, storage, or installation.
  2. Wear and tear due to normal usage, weathering, or environmental conditions.
  3. Issues resulting from misuse, neglect, accidental damage, or alteration.
  4. Structural failures or damage caused by non-compliance with local building codes or installation instructions.
  5. Damage from external factors, such as seismic activity, flooding, or other natural disasters.
  6. Costs associated with excavation, removal, or reinstallation of defective products.

Warranty Claims Process:

  1. Notify Bonner Concrete Products Inc. in writing within 30 days of discovering a defect. Include:
    • Description of the defect.
    • Proof of purchase (invoice or delivery receipt).
    • Photos documenting the issue.
  2. Upon receipt of your claim, we may require an on-site inspection or request additional evidence to verify the defect.
  3. If approved, we will repair or replace the defective product at our discretion.

Limitations of Liability:

  • The warranty is limited to the repair or replacement of the defective product and does not extend to incidental or consequential damages, including but not limited to labor costs, excavation, removal, reinstallation, lost profits, or delays.
  • Bonner Concrete Products Inc. reserves the right to discontinue or modify any product. If the original product is no longer available, a comparable substitute may be provided.

Transferability:
This warranty is non-transferable and applies only to the original purchaser.

Governing Law:
This warranty shall be governed by the laws of the state of Idaho.
