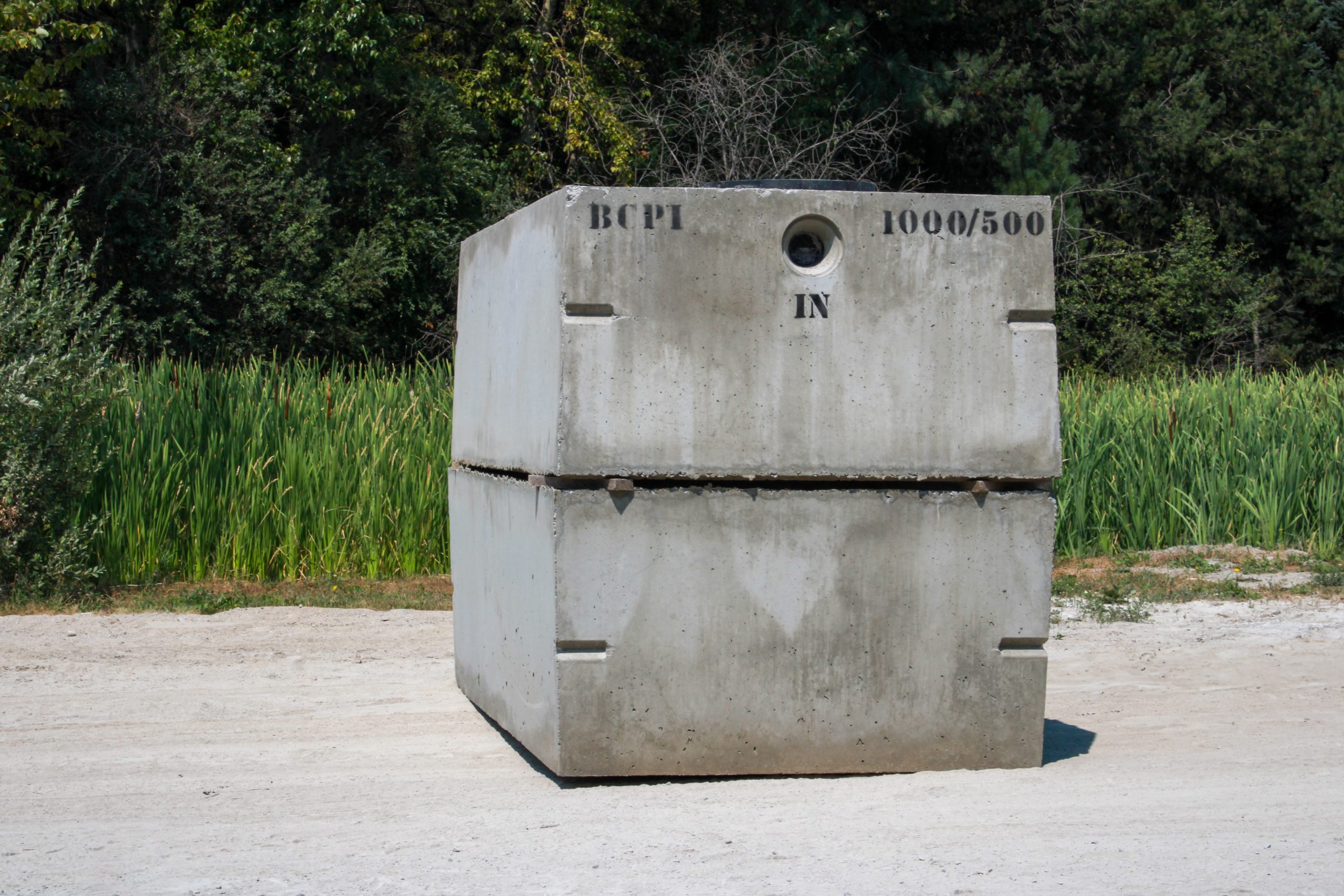

1000 Gallon with 500 Gallon Built in Pump Station 2-Piece Septic Tank with Orenco Flange

Part Number: 1101
Product: 1000 Gallon with 500 Gallon Built in Pump Station 2-Piece Septic Tank with Orenco Flange
Tank Size: 10’5” L x 5’5” W x 6’ H
Inlet: 63” from bottom of the tank to the bottom of the inlet hole.
Outlet: 60” from bottom of the tank to the bottom of the outlet hole.
Pump Station Outlet: 60” from bottom of the tank to the bottom of the outlet hole.
Weight: 13,700 lbs. (6,850 lbs. per half)
Dig hole: 12’ L x 7’ W
(A recommended 1’ minimum to 3’ maximum for back fill, but please check your installation specifications.)

Instruction Sheet for Installation View Schematics PDF

Description

Product Overview:

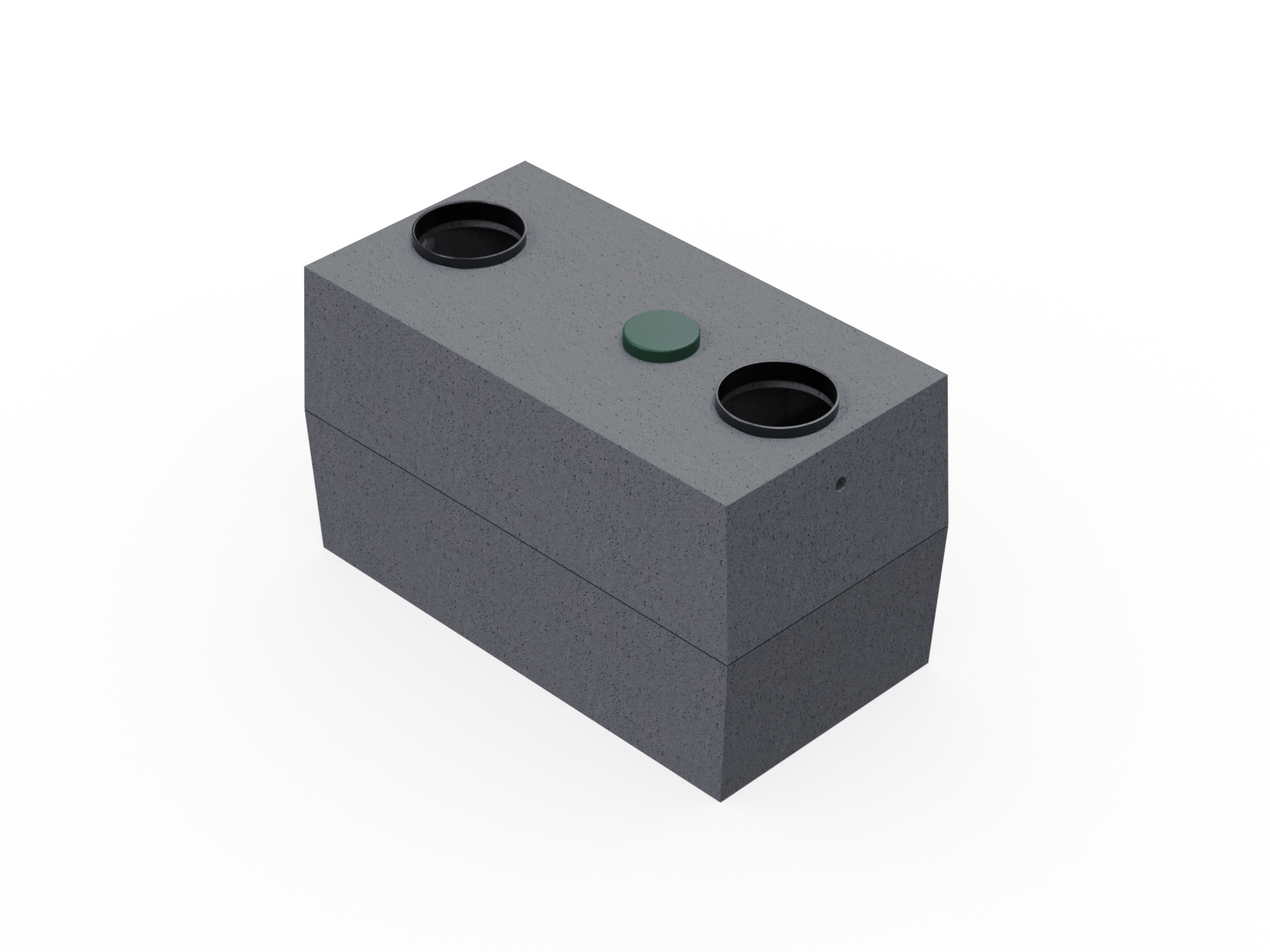

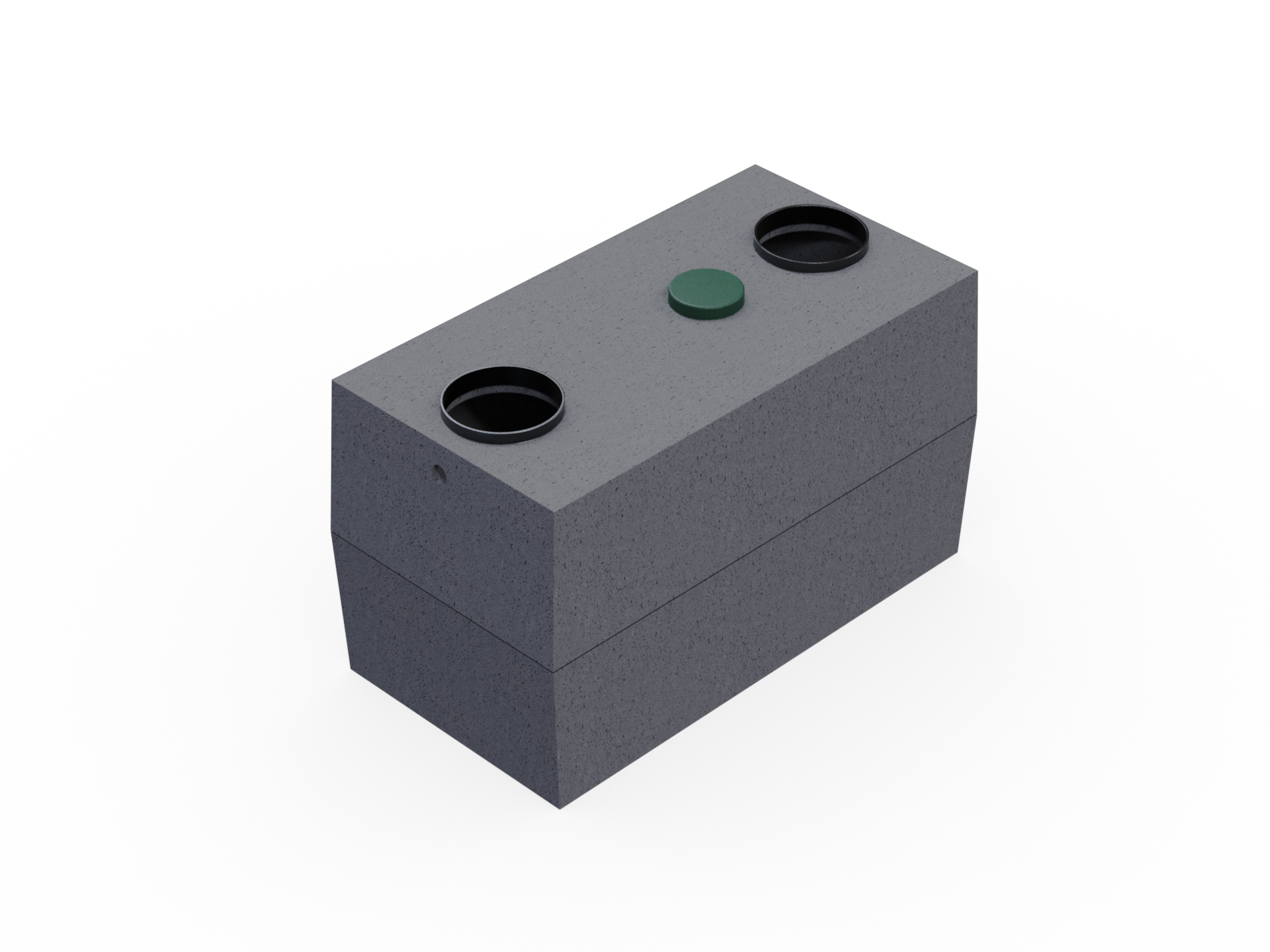

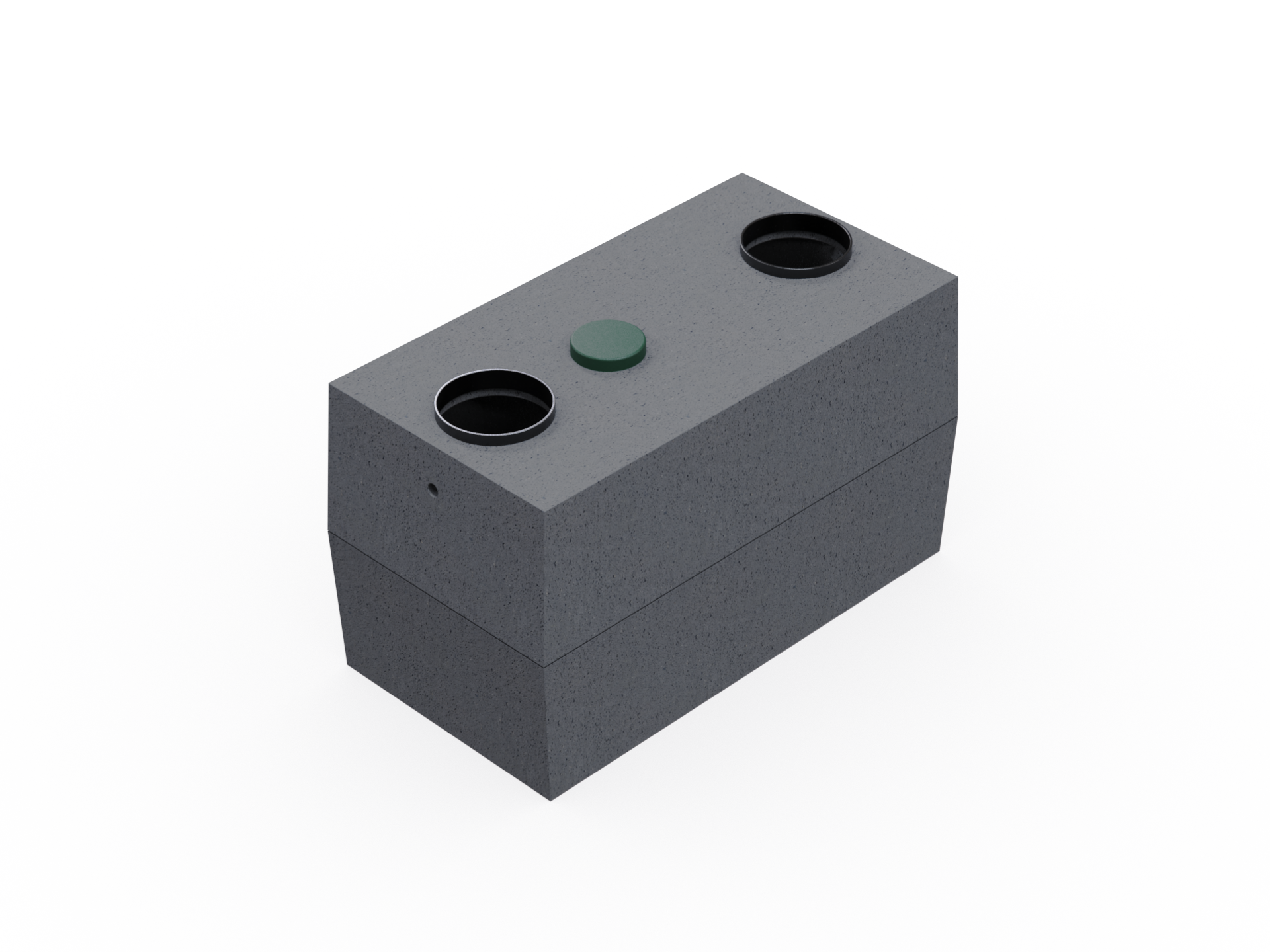

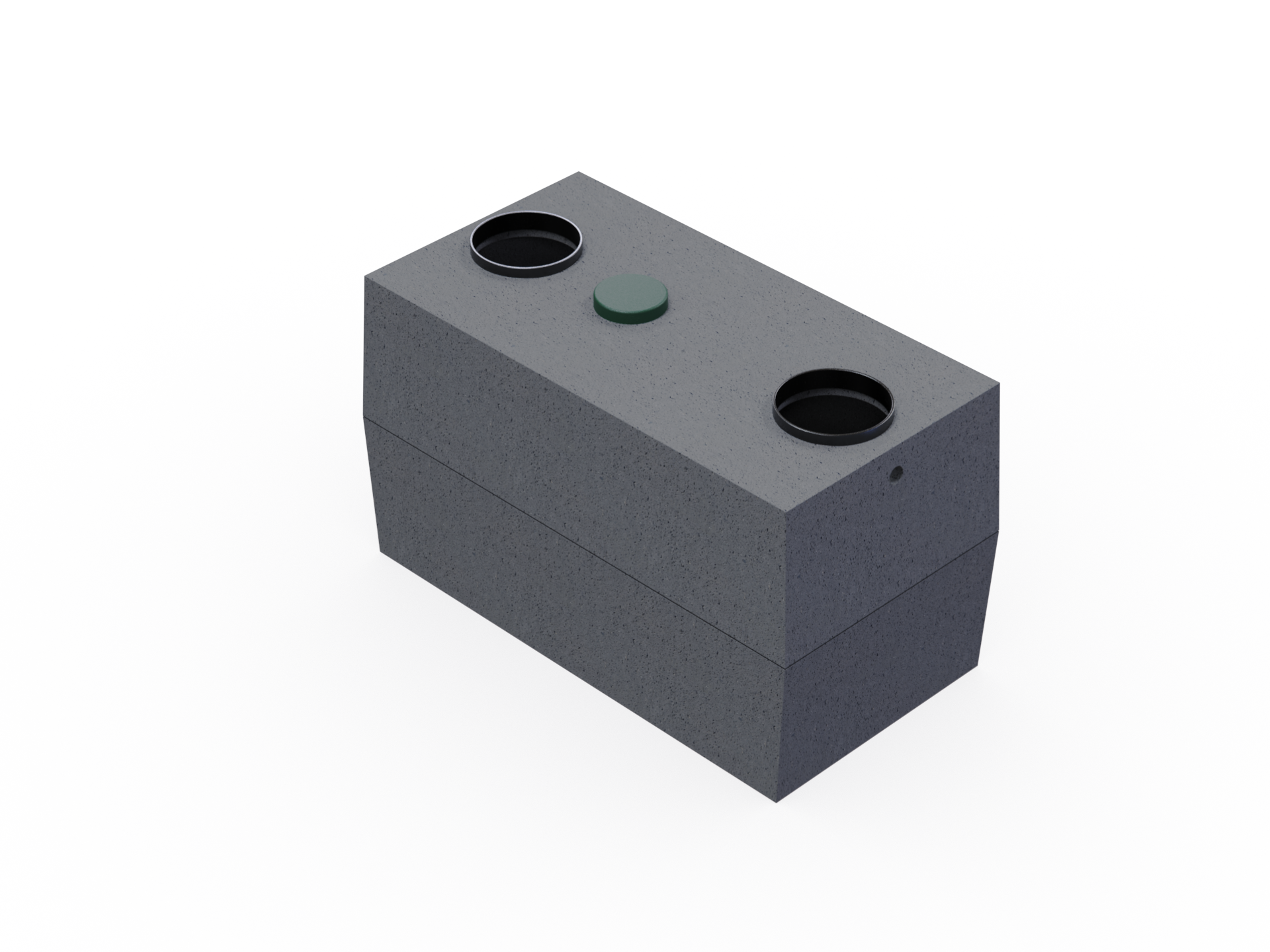

The 1000-Gallon Septic Tank with a 500-Gallon Built-in Pump Station with Orenco Flange is a dual compartment, 2-piece tank (top and bottom half) per Idaho state code. This tank features a built-in pump station that is suitable for use in areas where a traditional gravity system may not work. (The permit will specify if you have these requirements.) The pump is not included but can be purchased at a local distributor of your choice. This 2-piece tank includes two poured in Orenco flanges on top of the tank. (Used with green ribbed riser and a 24” plastic lids) The poured in flange is ideal if you are wanting easier tank access. This tank also includes a 12” plastic riser with a lid, mastic for sealing the halves together, as well as pre-installed plastic baffles and gasket seals (Inlet and outlet) for ease of plumbing installation.

Other Compatible Products: (sold separately)

Effluent Filter (Product #5130), Green Ribbed Riser (Product #5150), 24” Plastic Lid (Product #5120), 12×6″ Plastic Riser (Product #5100).

*Customers should check their permit from Panhandle Health before ordering.

Note: If you are in a sewer district, check with the district supervisor.

In order to decide on the size or type of tank, you will need to contact Panhandle Health Department or your local sewer district.

While we do supply both concrete and plastic tanks, we would only recommend the plastic tank if accessing the site is not feasible.

We deliver and set the tanks. We do not prep the site for the septic tank or finish installing pipes or drain fields.

Concrete covers are less expensive however they are heavier and more cumbersome than plastic. The plastic lids are green in color and blend into the landscape and are easily accessed for maintenance.

We do not recommend anything larger than a riding lawnmower.

3’ is the max bury on a tank, 2’ max on the larger tanks. Please check with Panhandle Health Department or your sewer district for specifics.

We recommend using 4” pipe. Check with your inspector for specifics.

Clean off seal, read instruction & place accordingly. Only push the pipe in ¾” into the tank. Warning: Pushing the pipe in to far will interfere with the pre-installed baffle.

This is not required, unless requested by your inspector.

This will depend on your conditions. Concrete tanks can float. It is recommended that you fill with 2’ of water to hold the tank in place if you are not planning to backfill immediately.

Concrete septic tanks are known for their durability and long lifespan. With proper maintenance, a concrete tank can last for decades.

No, you will have to purchase that through a local supplier.

Yes. Check with Panhandle Health Department for more information.

Single compartment septic tanks. Our manufactured double compartment tanks are considered pump stations.

Bonner Concrete supplies the tank, ez drain drain-field, sewer pipe, perforated pipe, ABS pipe, distribution boxes, fittings, risers and lids.
