1301.11301.01301.31400 H2O w:Flange

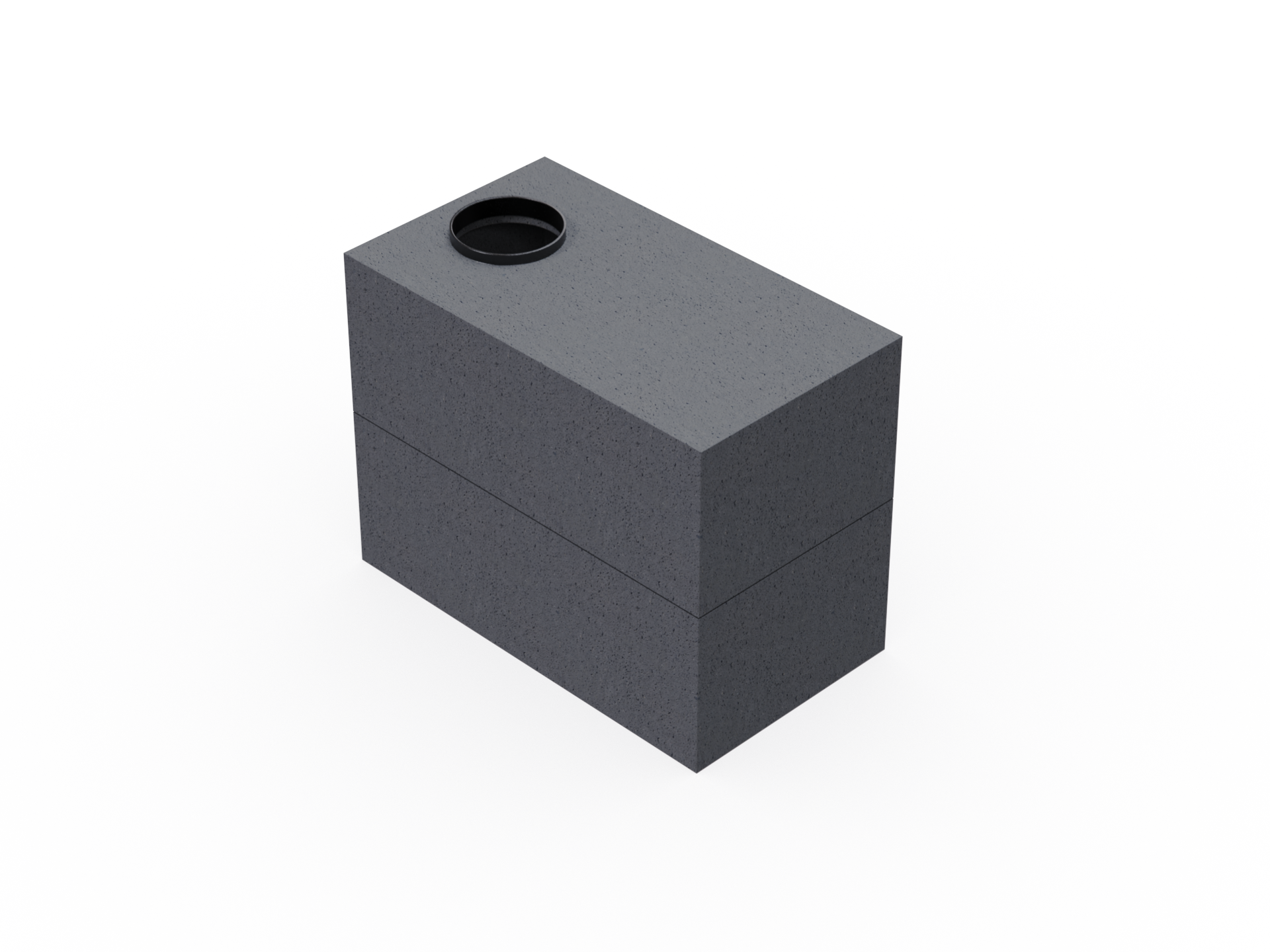

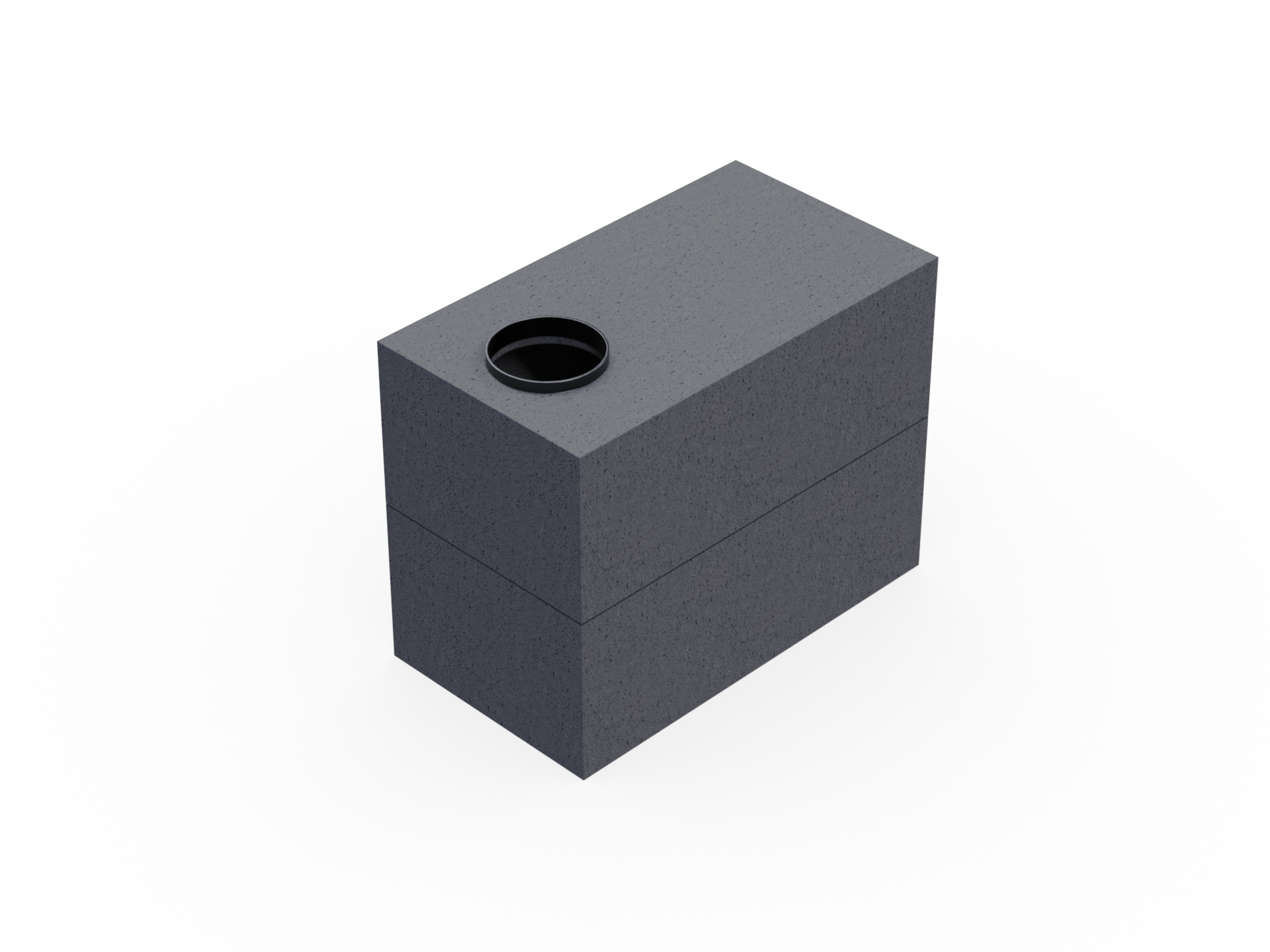

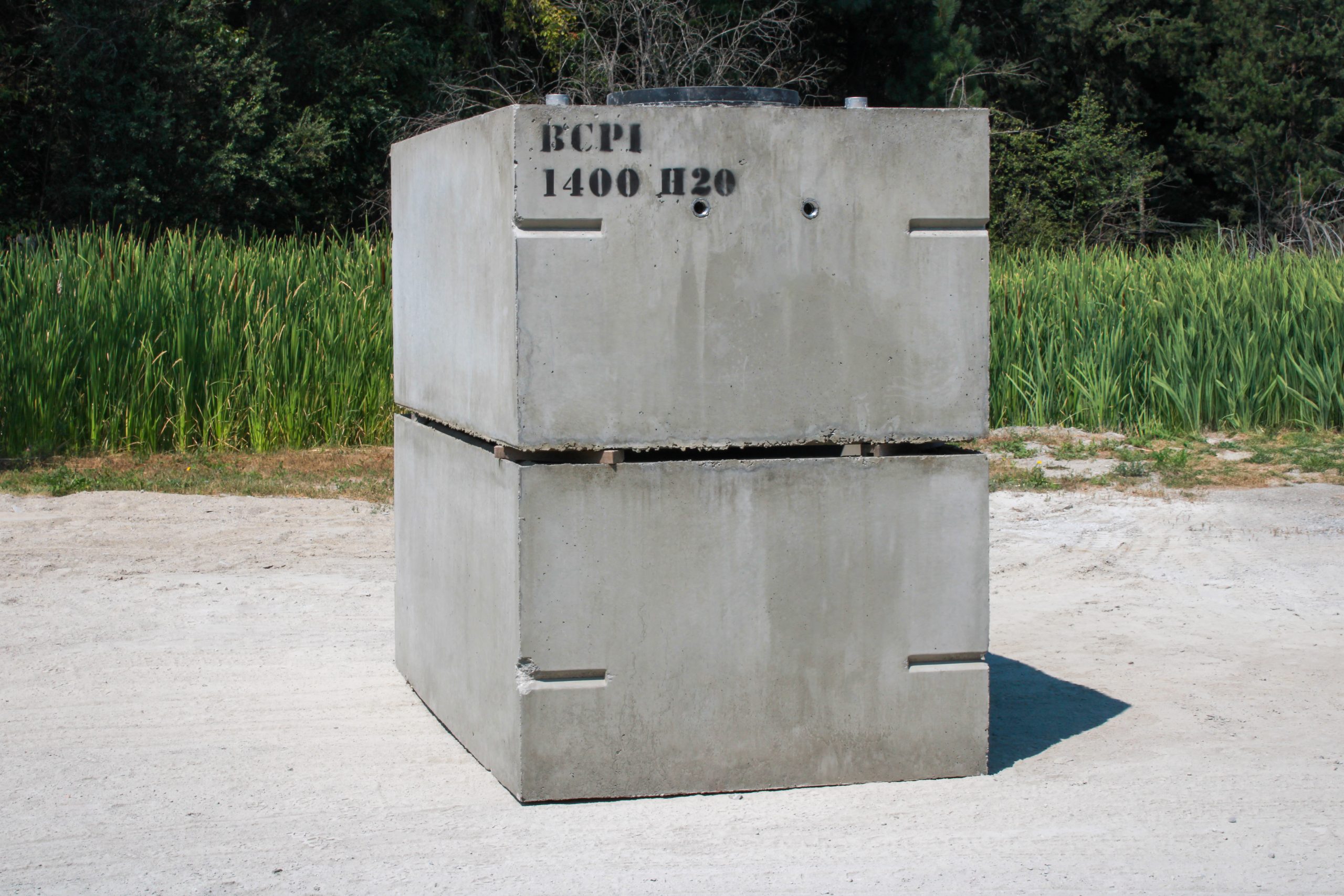

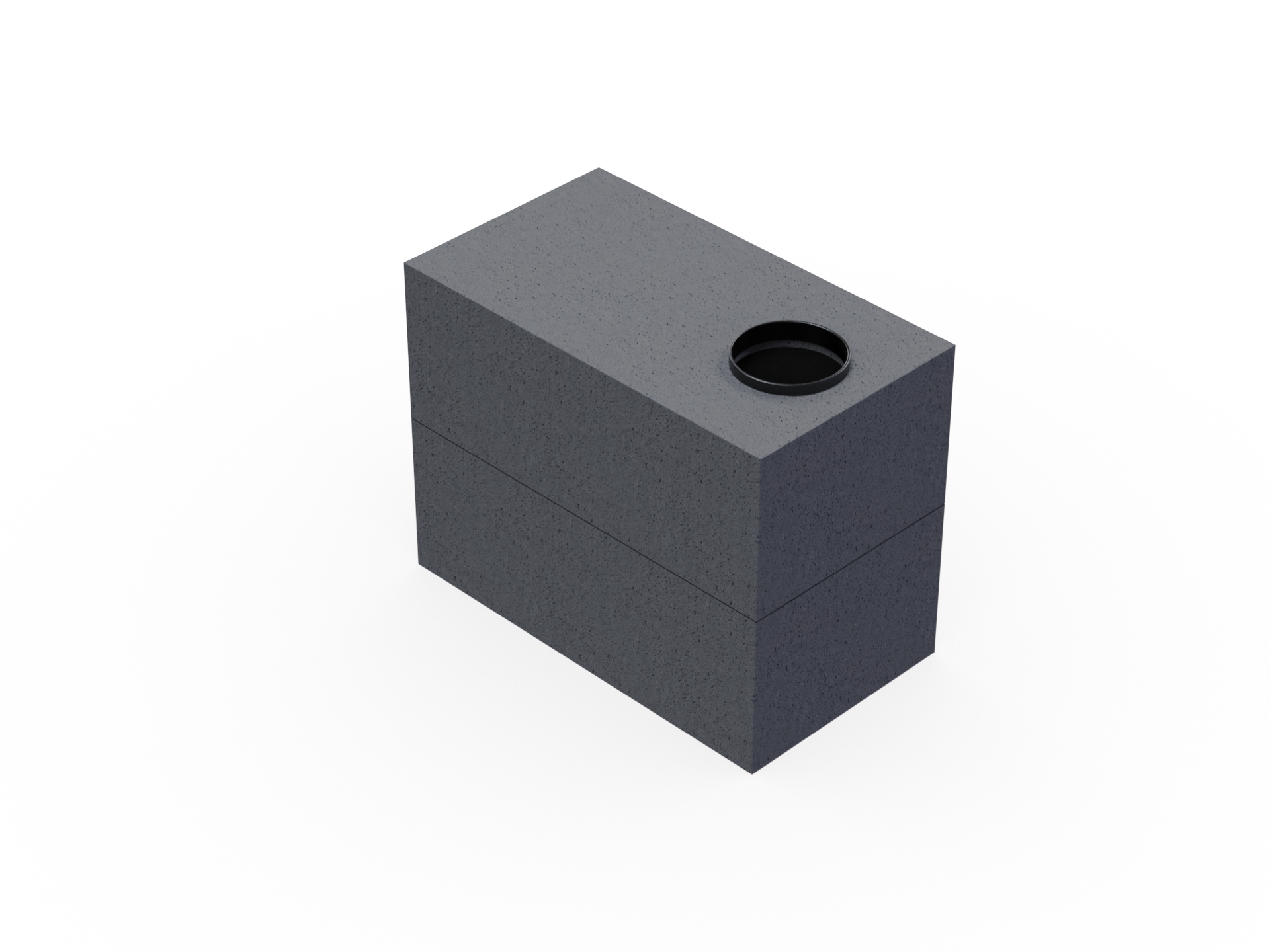

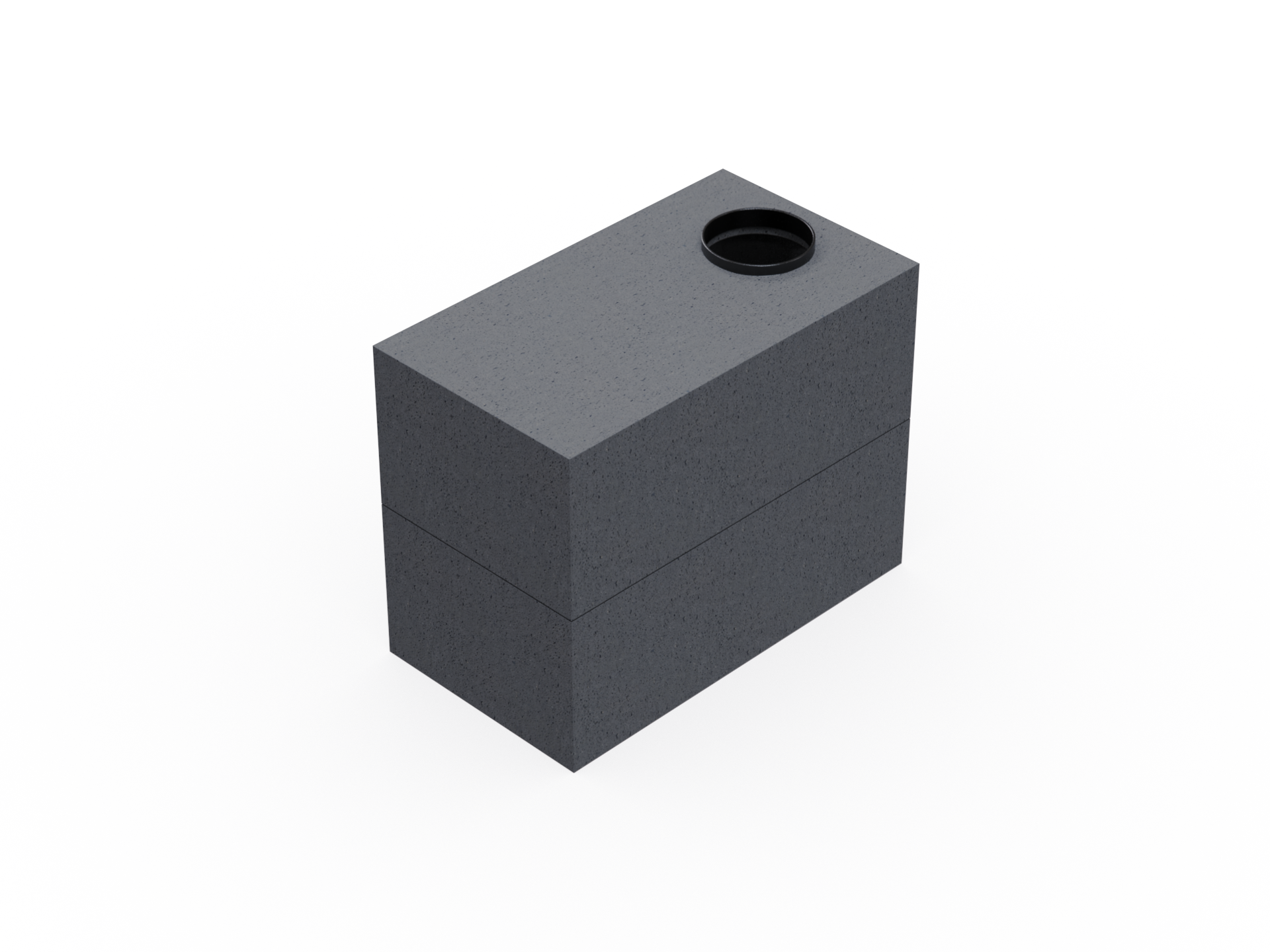

1400 Gallon 2 Piece Water Tank with Orenco Flange

Part Number: 1301
Product: 1400 Gallon 2 Piece Water Tank with Orenco Flange
Tank Size: 8’6” L x 4’9” W x 6’6” H
Weight: 12,000 lbs. (6,000 per half)
Dig hole: 10’ L x 7’ W
(A recommended 1’ minimum to 3’ maximum for back fill, but please check your installation specifications.)

Instruction Sheet for Installation View Schematics PDF

Description

Product Overview:

1400gallon water tank is a single compartment, 2piece tank (top and bottom half). One of the main advantages of a concrete water tank is its durability and long lifespan. Concrete is a strong and longlasting material that can withstand the elements and resist damage from water and other contaminants. This water tank is ideal for irrigation, fire protection, and as a source of drinking water.

Our standard 1400gallon water tank has been designed to accommodate most needs. We keep the standard tank in stock but you also have the option to design your own custom tank. In order to begin the custom tank manufacturing process, we will need a diagram of the pipe placements and a deposit. When these requirements are met, you will be placed on production schedule

For custom orders the following requirements must be met:

  • A non-refundable deposit to secure the sale of the product.
  • A diagram of the pipe placements and sizes (Pipe fee included up to 5 fittings).
  • Specification on the diagram of any desired features or additions, such as flanges or concrete covers on the top of the tank.

Other Compatible Products: (sold separately

Green Ribbed Riser (Product #5150)24” Plastic Lid (Product #5120).

We deliver and set the tanks in the hole, but we do not prep the site or install plumbing to the tanks. Contact the office for referral information if you will need help with the onsite work and need help finding a contractor.

No deposit is required for our standard design water tank. However, if you are going with a custom design, there is a $1000 non-refundable deposit.

You will need to grout the seam of the 1400 water tank. Once the tank is set, grout the seam with hydraulic cement.

To maintain a concrete water tank, it is important to regularly inspect the tank. The tank should be cleaned regularly to remove any dirt or debris that could enter the tank.

Concrete water tanks are known for their durability and long lifespan. With proper maintenance, a concrete water tank can last for decades.

This will depend on your conditions. Concrete tanks can float. It is recommended that you fill with 2’ of water to hold the tank in place if you are not planning to backfill immediately.

We do not recommend anything larger than a riding lawnmower.

3’ is the max bury on the 1400 water tank and 2’ on the 2500 water tank.
