Bonner Concrete Products INc.

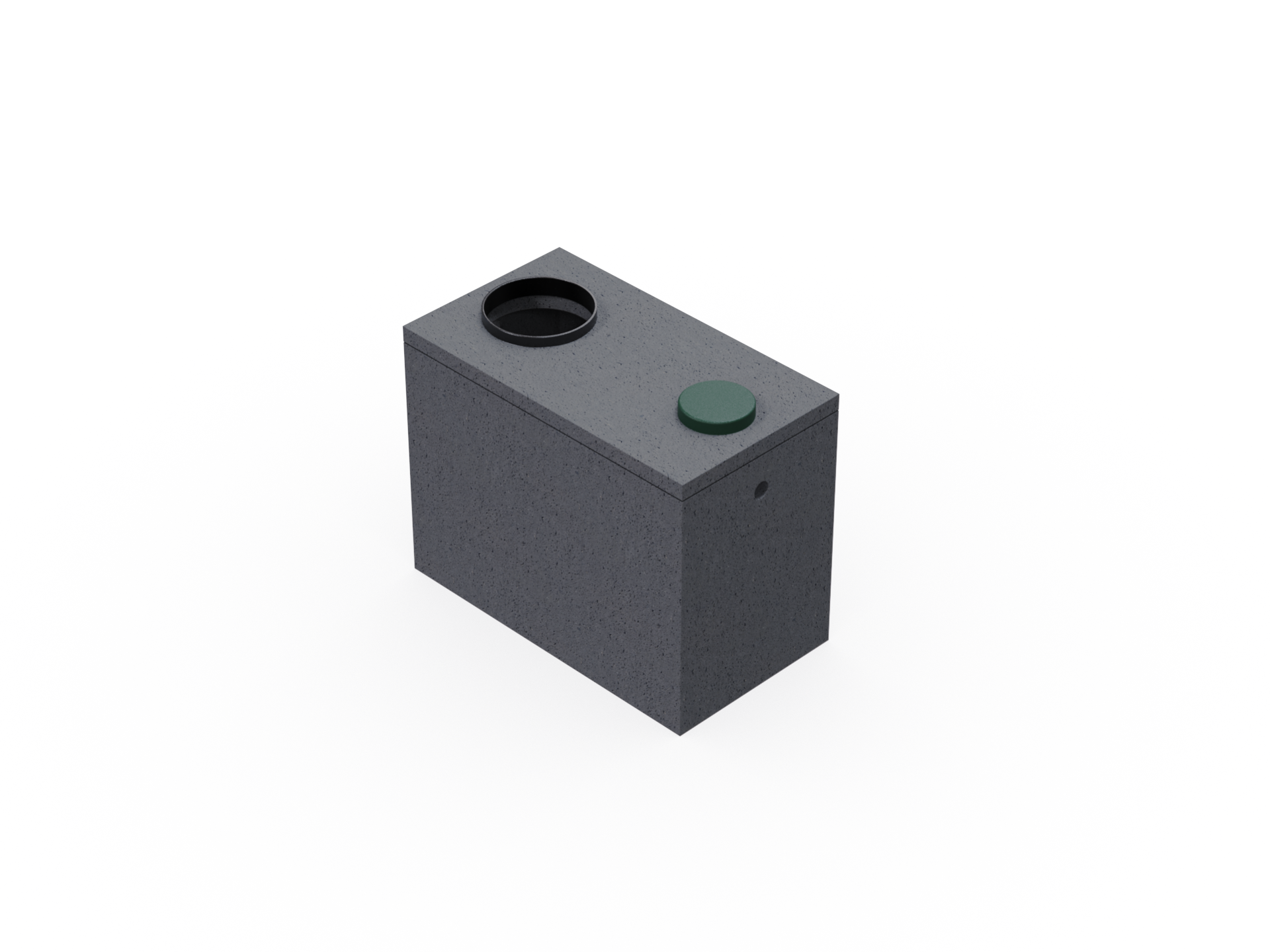

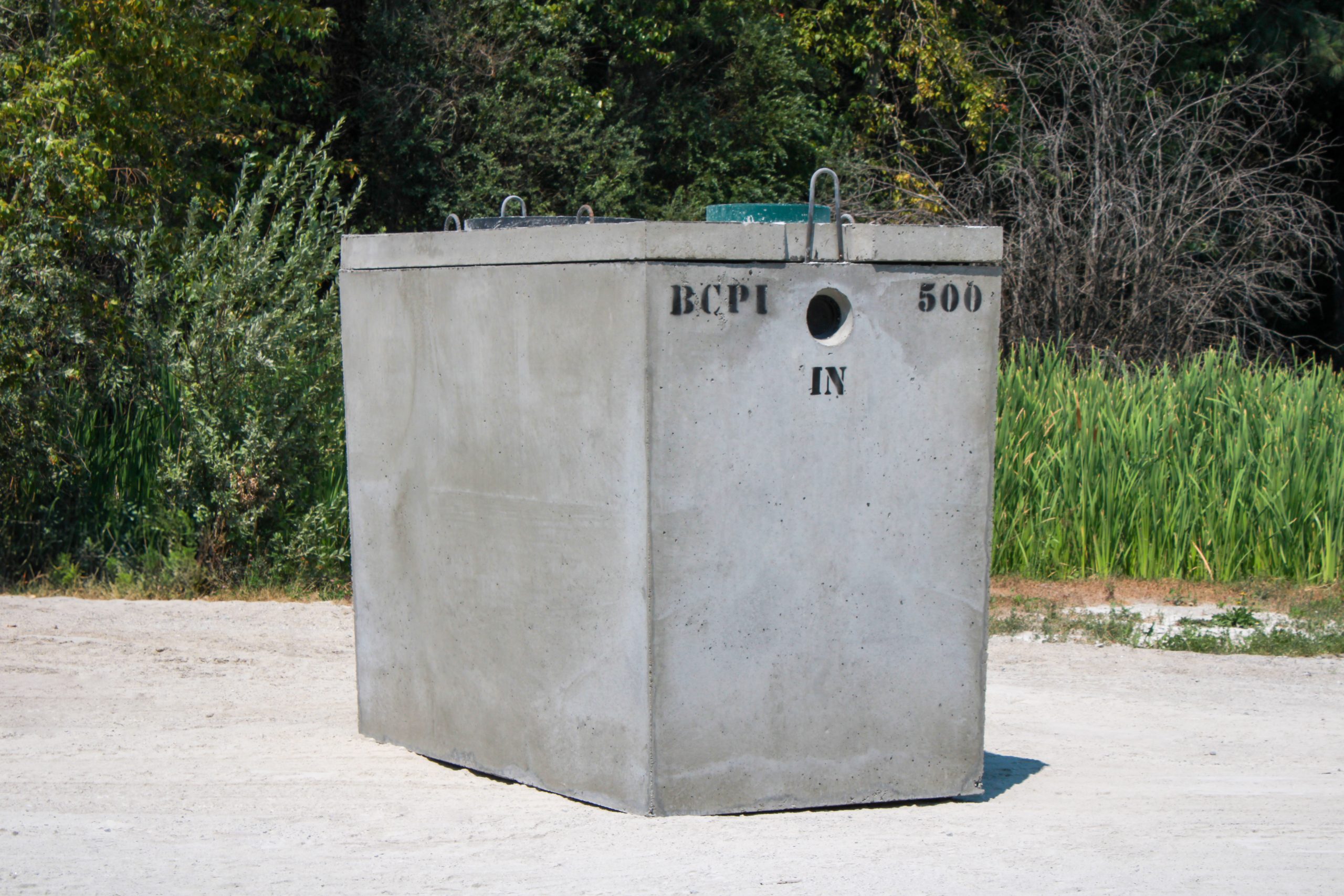

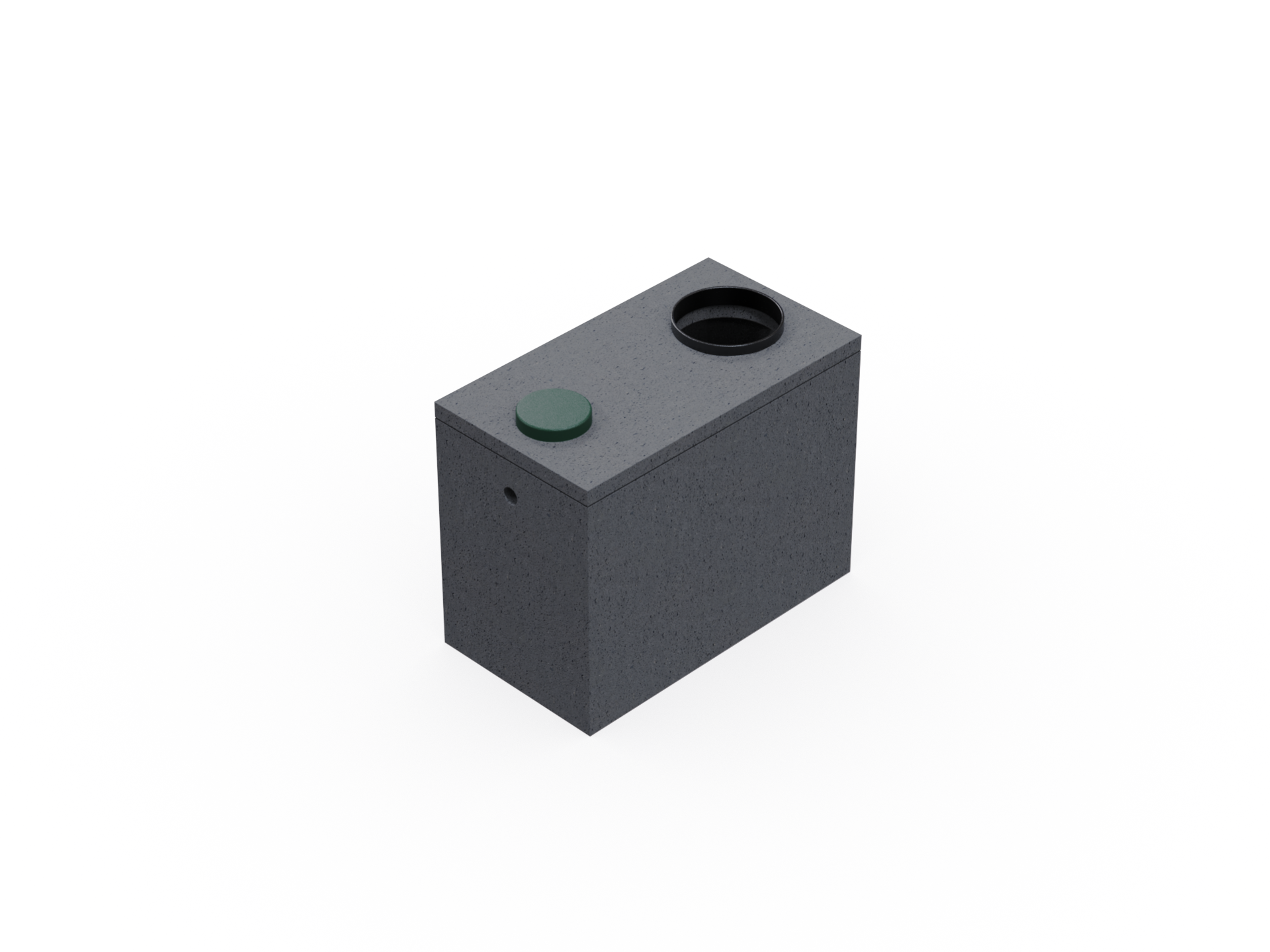

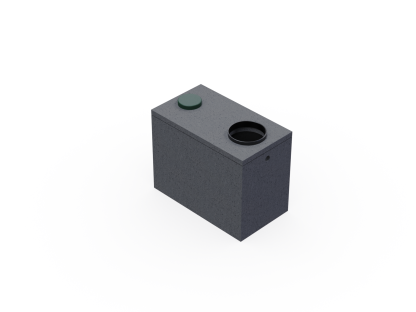

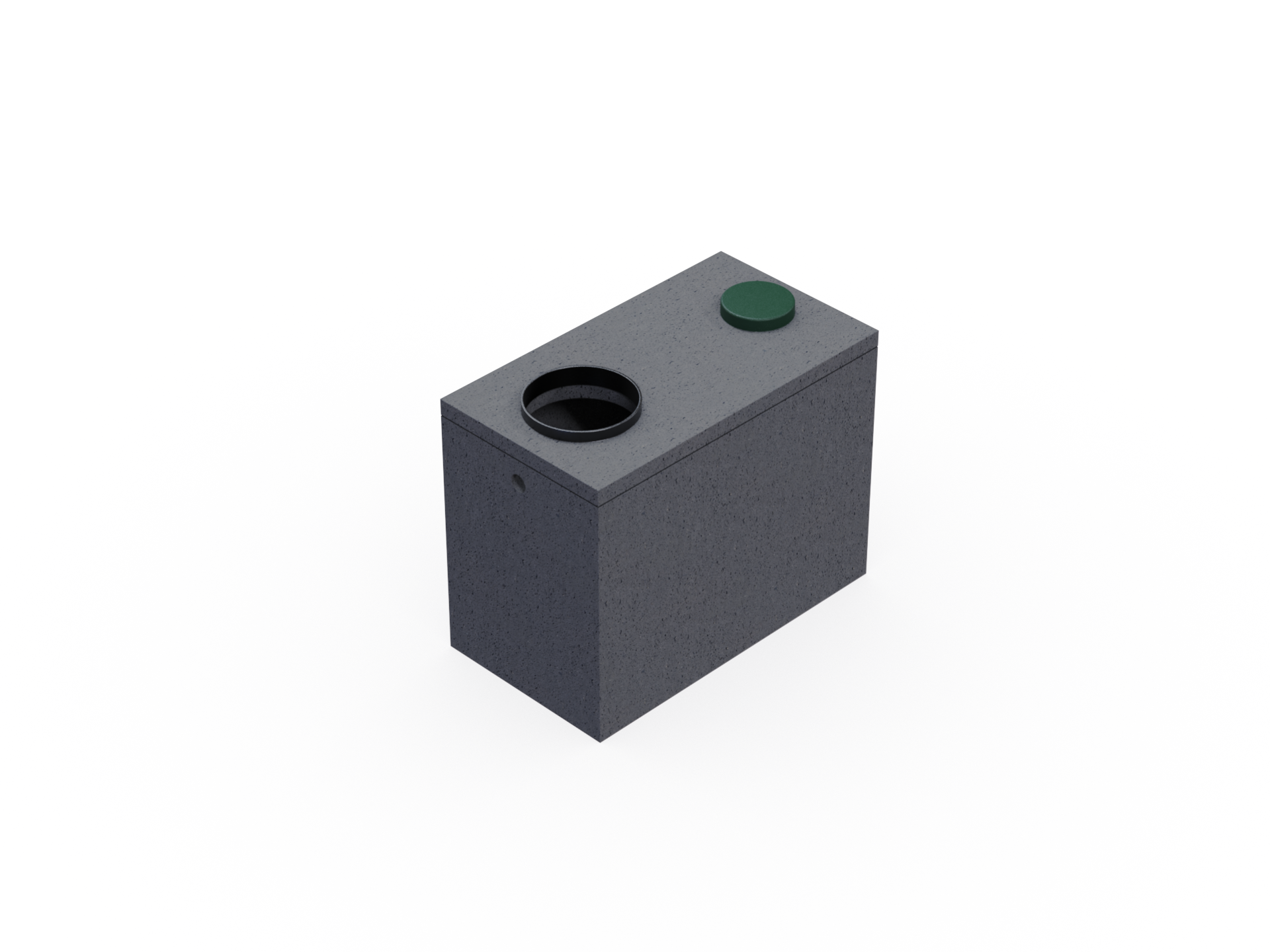

500 Gallon Pump Station 1 Piece Tank with Orenco Flange
500 Gallon Pump Station 1 Piece Tank with Orenco Flange - Image 2
500 Gallon Pump Station 1 Piece Tank with Orenco Flange - Image 3
500 Gallon Pump Station 1 Piece Tank with Orenco Flange - Image 4
500 Gallon Pump Station 1 Piece Tank with Orenco Flange - Image 5
Concrete 500 Gallon Pump Station

500 Gallon Pump Station 1 Piece Tank with Orenco Flange

Part Number: 1211
Product: 500 Gallon Pump Station 1 Piece Tank with Orenco Flange
Tank Size: 6’9” L x 3’9” W x 5’3” H
Inlet: 51” from bottom of the tank to the bottom of the inlet hole.
Outlet: 48” from bottom of the tank to the bottom of the outlet hole.
Weight: 6,000 Ibs.
Dig hole: 9’ L x 6’ W
(A recommended 1’ minimum to 3’ maximum for back fill, but please check your installation specifications.)

Instruction Sheet for Installation View Schematics PDF

Description

Product Overview:

The 500-Gallon Pump Station is a one-piece tank. The pump station is designed to efficiently pump wastewater out of the tank and into the designated sewage system. Pump stations are suitable for use in areas where a traditional gravity system may not work. (The permit will specify if you have these requirements.) The pump is not included but can be purchased at a local distributor of your choice. This 1-piece tank includes a poured in Orenco flange over the inlet side. (Used with green ribbed riser and a 24” plastic lid) The poured in flange is ideal if you are wanting easier tank access. This tank also includes a 12” plastic riser with a lid over the outlet side, mastic to seal the top to the tank, as well as pre-installed plastic baffles and gasket seals (Inlet and outlet) for ease of plumbing installation.

Other Compatible Products: (sold separately)

Effluent Filter (Product #5130), Green Ribbed Riser (Product #5150), 24” Plastic Lid (Product #5120), 12×6″ Plastic Riser (Product #5100).

*Customers should check their permit from Panhandle Health before ordering.

Note: If you are in a sewer district, check with the district supervisor.
