Bonner Concrete Products INc.

1210.711210.701210.73500 Pump Station w:ConcreteConcrete 500 Gallon Pump Station

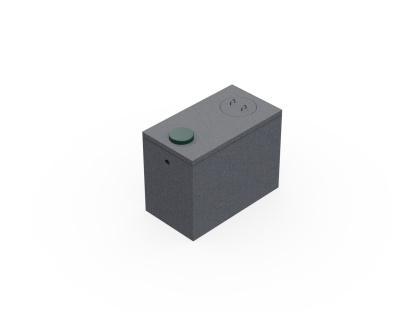

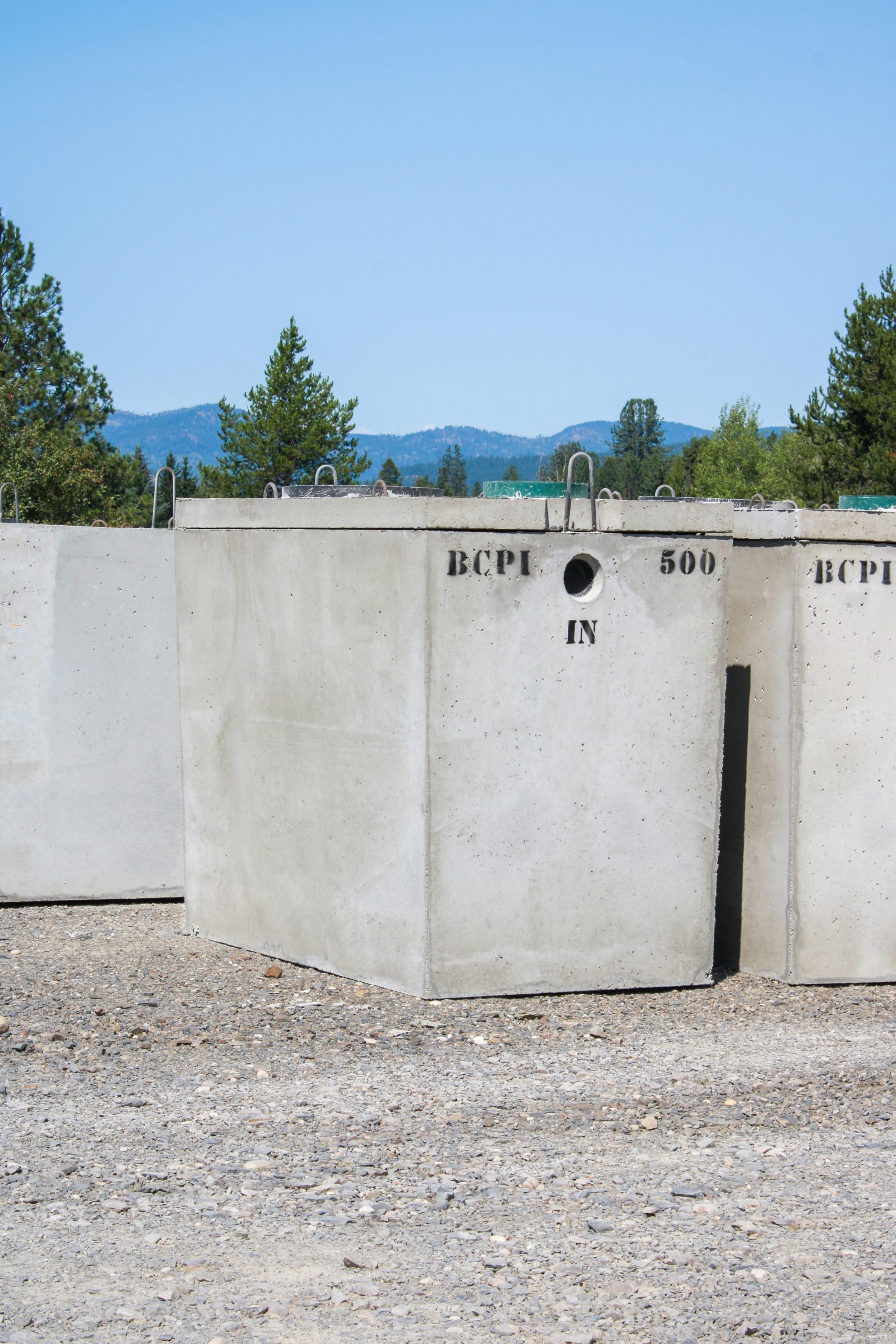

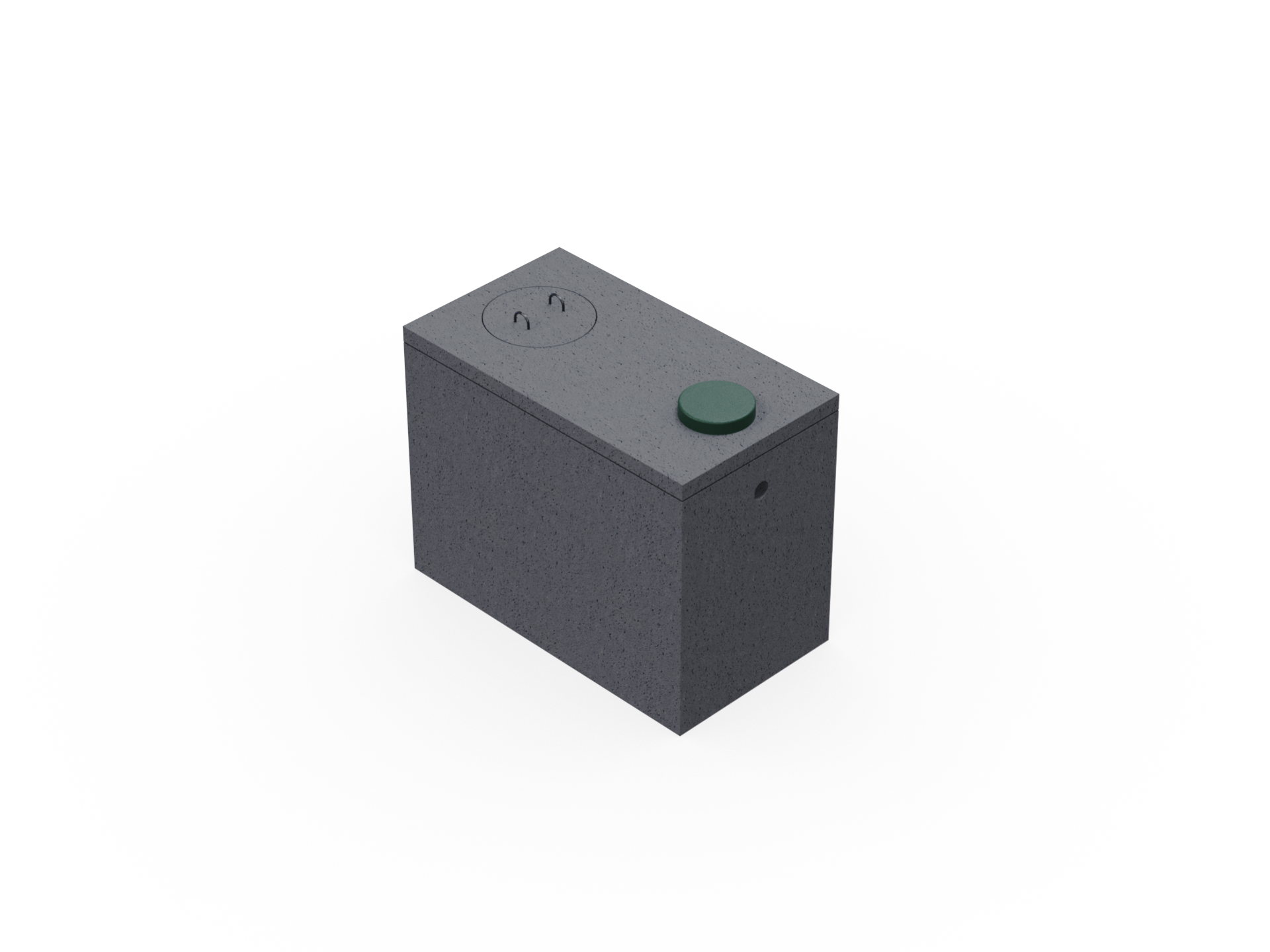

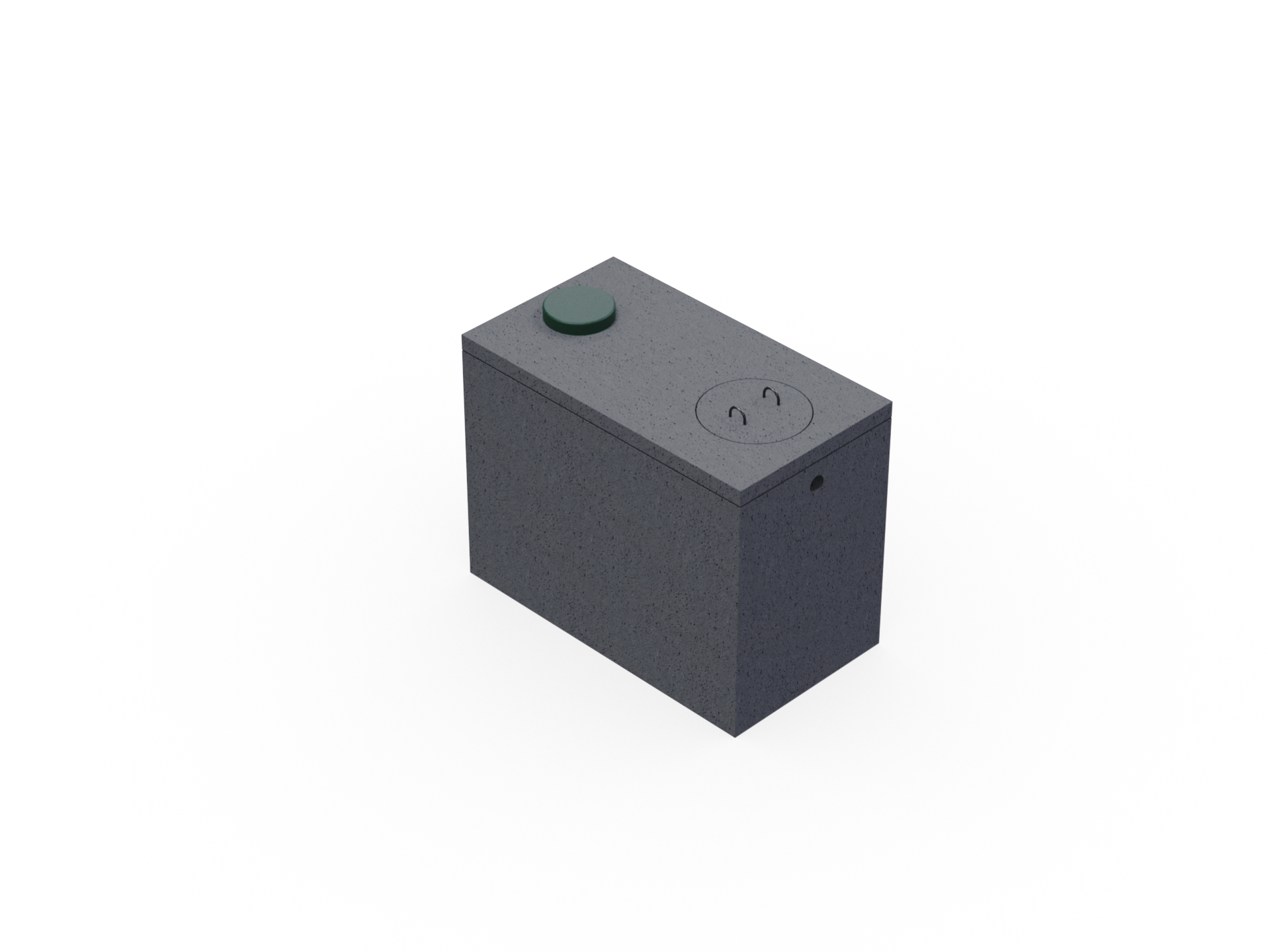

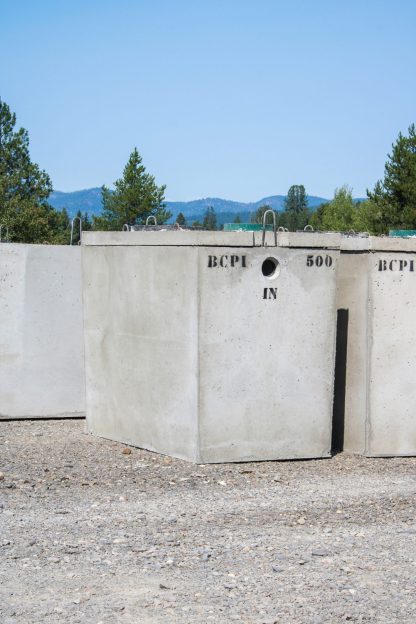

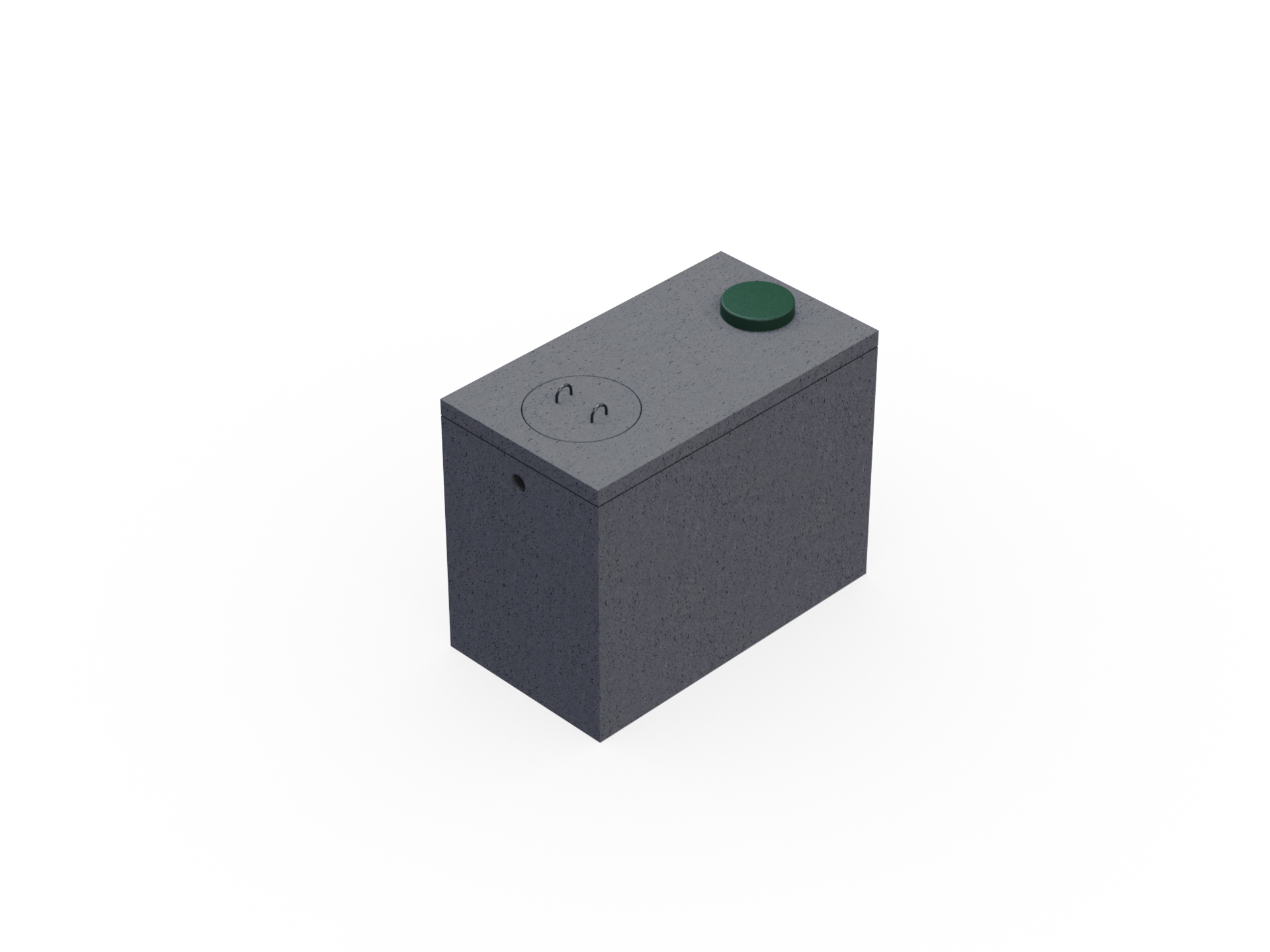

500 Gallon Pump Station 1 Piece Tank with Concrete Lid

Part Number: 1210
Product: 500 Gallon Pump Station 1 Piece Tank with Concrete Lid
Tank Size: 6’9” L x 3’9” W x 5’3” H
Inlet: 51” from bottom of the tank to the bottom of the inlet hole.
Outlet: 48” from bottom of the tank to the bottom of the outlet hole.
Weight: 6,000 Ibs.
Dig hole: 9’ L x 6’ W
(A recommended 1’ minimum to 3’ maximum for back fill, but please check your installation specifications.)

Instruction Sheet for Installation View Schematics PDF

Description

Product Overview:

The 500-Gallon Pump Station is a one-piece tank. The pump station is designed to efficiently pump wastewater out of the tank and into the designated sewage system. Pump stations are suitable for use in areas where a traditional gravity system may not work. (The permit will specify if you have these requirements.) The pump is not included but can be purchased at a local distributor of your choice. This 1-piece tank includes a 24” concrete lid over the inlet side, a 12” plastic riser with a lid over the outlet side, as well as mastic to seal the top to the tank.

Other Compatible Products: (sold separately)

Concrete Riser (for the 24” Cover),  12×6″ Plastic Riser (Product #5100).

*Customers should check their permit from Panhandle Health before ordering.

Note: If you are in a sewer district, check with the district supervisor.

CONTACT Us

EMAIL:

bcpi@live.com

Give us a call:

208.263.3979

Location:

464616 Highway 95 Sagle, ID  83860

Mailing address

P.O. Box 321 Sagle, ID  83860

Limited Warranty Policy
Bonner Concrete Products Inc.

Scope of Warranty:
Bonner Concrete Products Inc. warrants its pre-cast concrete products to be free from manufacturing defects in materials and workmanship under normal use and service conditions for a period of one (1) year from the date of delivery or installation, whichever comes first.

Limited Warranty Terms

What Is Covered:
This warranty applies solely to defects arising from the manufacturing process, including:

  • Structural integrity issues due to improper curing or material inconsistencies.
  • Cracks, chips, or other defects resulting directly from manufacturing errors.

What Is Not Covered:
This warranty does not cover:

  1. Damage caused by improper handling, storage, or installation.
  2. Wear and tear due to normal usage, weathering, or environmental conditions.
  3. Issues resulting from misuse, neglect, accidental damage, or alteration.
  4. Structural failures or damage caused by non-compliance with local building codes or installation instructions.
  5. Damage from external factors, such as seismic activity, flooding, or other natural disasters.
  6. Costs associated with excavation, removal, or reinstallation of defective products.

Warranty Claims Process:

  1. Notify Bonner Concrete Products Inc. in writing within 30 days of discovering a defect. Include:
    • Description of the defect.
    • Proof of purchase (invoice or delivery receipt).
    • Photos documenting the issue.
  2. Upon receipt of your claim, we may require an on-site inspection or request additional evidence to verify the defect.
  3. If approved, we will repair or replace the defective product at our discretion.

Limitations of Liability:

  • The warranty is limited to the repair or replacement of the defective product and does not extend to incidental or consequential damages, including but not limited to labor costs, excavation, removal, reinstallation, lost profits, or delays.
  • Bonner Concrete Products Inc. reserves the right to discontinue or modify any product. If the original product is no longer available, a comparable substitute may be provided.

Transferability:
This warranty is non-transferable and applies only to the original purchaser.

Governing Law:
This warranty shall be governed by the laws of the state of Idaho.
